IDP250J - Applied Design and Prototyping

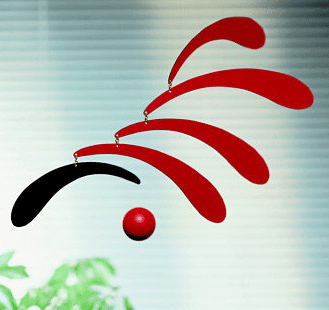

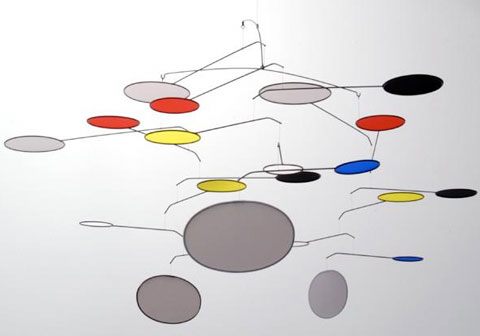

IDP250 Project ideas Mobiles Making something like these will reguire finding the weight and centroid of each object. Then a little math to calculate where to drill the holes. The first one is the easiest - reccomended :-)

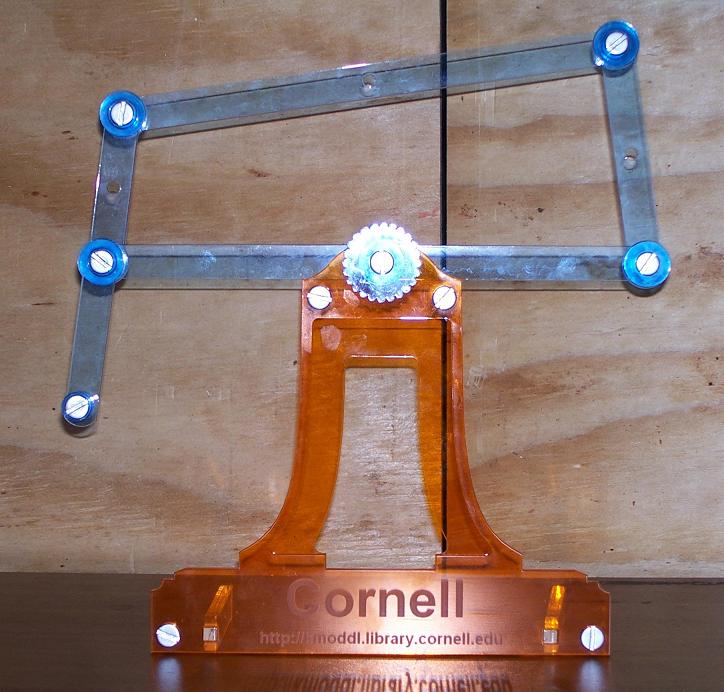

Four Bar Linkage There are many variations of this linkage that can be produced. See this web page to iterativly try different link lengths.

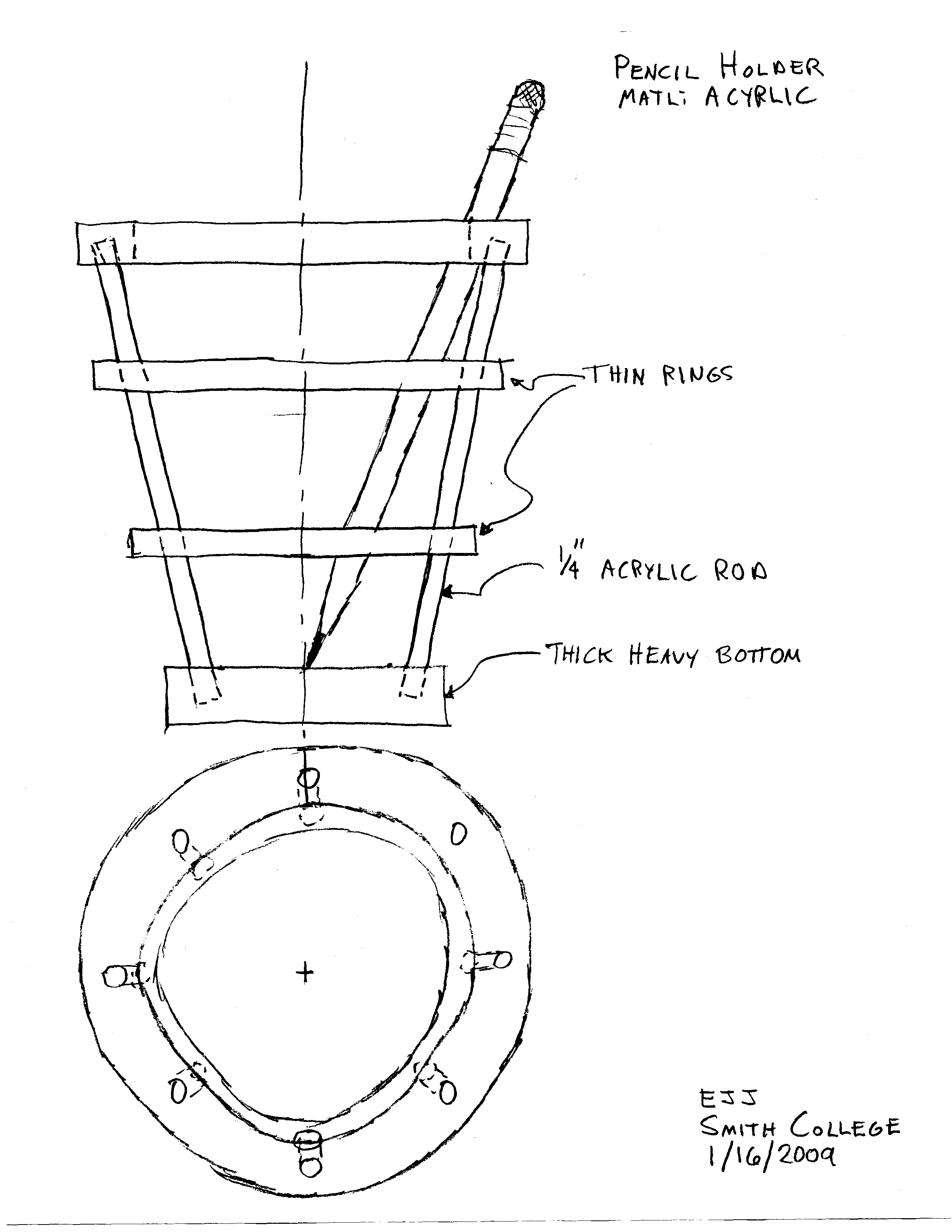

Pencil Holder - This can be made from acrylic. The challenge is drilling the holes and assembling it properly, and neatly!

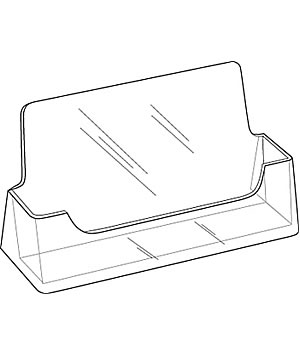

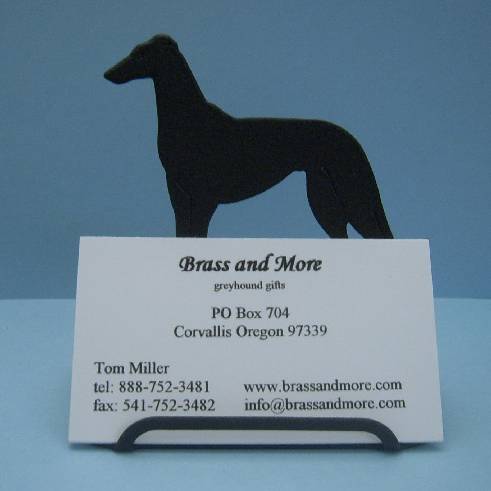

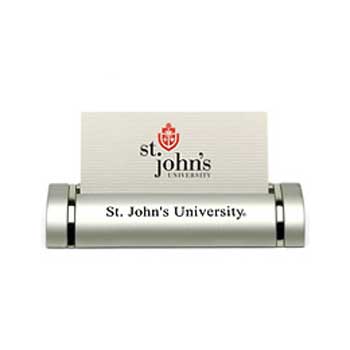

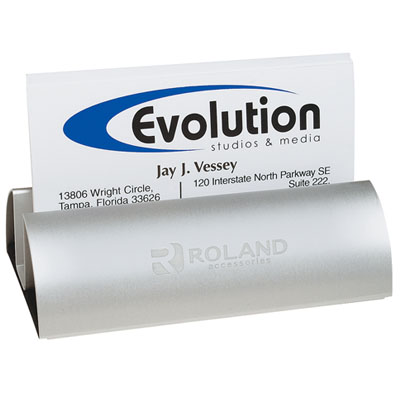

Business card holder (this might be fun if you have extra time) These can be made using just about any method or material. Cards measure 3.5" x 2" example1 example2 example3 example4 example5
Notes about laser cutting and 3d printing Laser can cut on a 12x24 surface, thin wood, paper card stock, acrylic can be used. Acrylic up to .375 thick. wood/paper up to .062 3d printer has 8x8 inch work volume, and is slow to run. Keep parts small as possible.
Process Plan Process plans are critical for doing well in the design world! No matter how good your design is, unplanned manufacturing will result in a poor final product. Process plans allow you to make the most of your time in the shop. They also help you to structure your thoughts by forcing you to think about how your are going to build your parts and machine before you enter the shop. Process Plan TableYou should make a table with the following columns. Make a row for each major step in making a part.
Bill Of Materials Create a list of all the bits and pieces of your project. If for example you are cutting four rings from a piece of 1/4" acrylic, figure out the minumum size piece of material you'll need to start with. Any fasteners, glue, paint should be listed. We will use this list to determine what parts, if any, we need to order to complete the project.
|
||||||||||||||||||||
