How to write a kernel module for Linux

What is a kernel module?

A kernel module is an extension to the operating system. The module resides in the same privilege level of the OS (the highest) and therefore can access every resource of the system. Under Linux, a module is nothing more than a C program with a well-defined interface to communicate with user processes and with other parts of the operating system.

In the following sections we will use the term device driver instead of kernel module. A device driver is a kernel module specialized in I/O communication with some sort of device. The term device has a very wide meaning and it does not exclusively refer to an external or physical system. In general, a device is some kind of resource such as a floppy disk, a printer, a mouse, but also a special region of memory, a virtual terminal or a message box.

Classes of devices and modules

Linux distinguishes between three types of devices. Each module implements only one of these types and thus is classifiable as a character module, block module or a network module.

• A character device is one that can be accessed as a stream of bytes, like a file. Reading from such a device can be done byte by byte. These devices are located under the /dev directory. Examples are /dev/tty (terminal) and /dev/port (I/O port access).
• A block device is a device that can be accessed only as multiples of a block, where the size of a block depends on the device. This category includes hard disks and floppy disks, where the size of a block is two sectors (1 KB). Examples are /dev/floppy/0u1440 (first floppy, 1.4 MB) and /dev/hda (first hard disk).
• A network device is a device in charge of exchanging data with other hosts. A network module is not visible on the file system (i.e. cannot be found in the /dev directory).

It is possible to identify a module's class by using the ls -l command. For example:

[ealtieri@italia os]$ ls -l /dev/tty
crw-rw-rw- 1 root root 5, 0 Jun 15 12:59 /dev/tty

The "c" in the file properties shows that the tty (terminal) device is a character device.

In this document we will discuss character devices only.

The File Interface

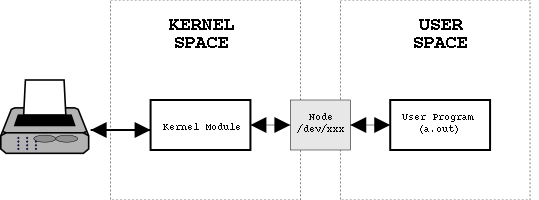

One of the greatest features of Linux and UNIX is that almost every resource on the system looks like a file, including devices. As shown in the previous section, device files (called nodes) are located under the /dev directory. Each of these device files is associated with a particular module in the kernel. If the kernel is compiled with Device File System support, the module creates /dev entries automatically at load-time and removes them when it is unloaded.

Because devices are files, we can issue file operations on them such as open(), read(), write() and close(). Every time a file operation is issued on a device file, the kernel module associated with such device must handle that operation. For example:

fd = open("/dev/hda", O_RDONLY);

The above operation opens the /dev/hda device (first hard disk) for read only (O_RDONLY). When open() is issued, the operating system knows that /dev/hda is a device file. Therefore it locates the kernel module associated with the device and calls the device_open() file operation handler in that module. At this point it is up to the device driver to initialize the device and maybe return an error code.

There must be a handler for every possible file operation (listed below). However, the device driver can choose default actions for some operations.

How does the OS know which module is associated with a /dev entry? Each module has to register itself using the devfs_register() function. This function automatically creates an entry in the /dev directory. The module also uses this function to tell the operating system the address of the file-operations handler functions, as shown below. Thus, the call to open() above can be translated to the appropriate device-specific function provided by devfs_register().

/* handlers for the file operations */
struct file_operations mydev_fops = {
  open   : mydev_open,            /* handler for the open() operation    */
  release: mydev_close,           /* handler for the close() operation   */
    /* NULL (default actions) */
};

/* this function is called when the module is loaded */
int mydev_init(void)
{
  ...
  devid = devfs_register( ...
                          "mydev",     /* create /dev/mydev entry */
                          ...
                          &mydev_fops, /* file ops handlers (see above) */
                          ... );

Compiling and loading a module

To compile a kernel module just type the following:

[ealtieri@italia dev]$ gcc -c -D __KERNEL__ -D MODULE skeldev.c

Notice the -c flag which tells GCC to compile the source file without generating an executable. The command above produces the skeldev.o object file. This object can now be injected in the kernel using the (privileged) insmod command:

[ealtieri@italia dev]$ sudo /sbin/insmod skeldev.o

If insmod does not output any error message, the module has been correctly inserted in the kernel. You can see this with the "List Modules" command (lsmod). Also, the module should have created the /dev/skeldev entry.

[ealtieri@italia dev]$ /sbin/lsmod
Module                  Size  Used by    Tainted: P
skeldev                  644   0 (unused)

[ealtieri@italia dev]$ ls -l /dev/skeldev
crw-rw-rw-    1 root     root       8,   2 Dec 31  1969 /dev/skeldev

Communicating with a module

Communication between a device driver and a user process occurs mainly with the read() and write() file operations. Using the basic device driver skeleton above as reference, we can add handlers for the read() and write() file operations.

/* read from device */
static ssize_t skel_read(struct file *filp, char *buf, size_t count, loff_t *offp);

/* write to device */
static ssize_t skel_write(struct file *filp, const char *buf, size_t count, loff_t *offp);

/* file operations handlers */
static struct file_operations skel_fops = {
        read  : skel_read,    /* handler for the read() operation  */
        write : skel_write,   /* handler for the write() operation */
        /* NULL (default) */
}

The read() file operation takes four arguments:

• struct file* filp, a pointer to a file structure, defined in include/linux/fs.h (line 519) . This structure referst to an open file, in this case the device node. The operating system allocates this structure for the device driver when the device node is opened.
• char *buf, a user-space buffer where the data to be read from the device driver has to be copied to.
• size_t count, the number of bytes to be read from the device.
• loff_t* offp, indicates the file position the user is accessing.

The function returns the number of bytes copied to the user buffer, which may or may not be equal to count.

Following is a simple implementation of skell_read() which copies data from the driver buffer skel_buffer[] to the user buffer:

/* device buffer */
static unsigned char skel_buffer[SKEL_BUFMAX];

...

/* read from device */
static ssize_t skel_read(struct file *filp, char *buf, size_t count, loff_t *offp)
{
	if (count > SKEL_BUFMAX)
		count = SKEL_BUFMAX;  /* trim data */
	copy_to_user(buf, skel_buffer, count);
	return(count);
}

The write() file operation is similar to read(), but in this case data flows from the user buffer to the driver buffer:

/* write to device */
static ssize_t skel_write(struct file *filp, const char *buf, size_t count, loff_t *offp)
{
	if (count > SKEL_BUFMAX)
		count = SKEL_BUFMAX;
	copy_from_user(skel_buffer, buf, count);
	return(count);
}

skeldev2.c is a basic device driver implementation with read() and write() file operations.

Testing the module

To test the skeldev2.c device driver we can write a simple C program that opens the skeldev2 device, writes some data and then retreives it. This is shown below.

int main(void)
{
	int fd;
	ssize_t count;
	char buf[50];

	/* open device */
	if ((fd = open("/dev/skeldev2", O_RDWR)) < 0) {
		perror("open()");
		exit(1);
	}

	/* write to device */
	memset(buf, 0x00, sizeof(buf));   /* clear buffer */
	strcpy(buf, "Hello World!");
	count = write(fd, buf, sizeof(buf));
	printf("Written %d bytes to device\n", count);

	/* read from device */
	memset(buf, 0x00, sizeof(buf));   /* clear buffer */
	count = read(fd, buf, sizeof(buf));
	printf("Read %d bytes from device: %s\n", count, buf);

	/* close device */
	close(fd);
	exit(0);
}

test_skel2.c is a test program for the skeldev2.c device.

Debugging with printk()

Because a kernel module does not run in user space, the C libraries are useless. This means that the familiar printf() function will not work in a kernel module. Fortunately, the kernel provides a similar function, printk(), which your device driver can use to output messages. However, there are some important differences between these two functions:

The /proc filesystem

A different way to communicate with device drivers is the /proc file system. For example, let's examine the /proc/meminfo file:

[ealtieri@italia os]$ ls -l /proc/meminfo
-r--r--r--    1 root     root            0 Jun 19 11:20 /proc/meminfo
[ealtieri@italia os]$ cat /proc/meminfo
        total:    used:    free:  shared: buffers:  cached:
Mem:  525320192 447213568 78106624        0 81035264 157761536
Swap: 271392768        0 271392768
MemTotal:       513008 kB
MemFree:         76276 kB
MemShared:           0 kB
Buffers:         79136 kB
...

As you can see from the ls command above, the /proc/meminfo file has size zero (number left to the date). However, when we show the contents of the file with cat, the file appears to contain information. How can we explain this? The trick is that files under the /proc file system are generated when they are read. Each of these files is associated with a module in the kernel. When the file is read, using cat for example, the kernel locates its module and calls a function to generate the contents of the file.

/proc operations are handled in a similar way to the file operations described earlier. You can define a handler for a read operation on a /proc entry and one for a write operation. In this document we will describe only the read handler.

First, a proc entry is created at load time using the create_proc_read_entry() function:

/* create /proc/xxxx entry */
proc = create_proc_read_entry
	(
	 skel_name,              /* entry name (/proc/skeldev)    */
	 0,                      /* default mode                  */
	 NULL,                   /* parent directory (NULL=/proc) */
	 skel_read_proc,         /* read() operation handler      */
	 NULL                    /* other data                    */
	 );

The code above registers skel_read_proc() as the handler for the read operation on the /proc/skeldev entry. This function must have the following prototype:

static int skel_read_proc(char *buf, char **start, off_t offset, int count, int *eof, void *data)

The contents of the /proc/skeldev file is generated "on the fly" by writing to the buf parameter. A simple implementation of skel_read_proc() could be the following:

/* Handler for /proc/skeldev read */
static int skel_read_proc(char *buf, char **start, off_t offset, int count, int *eof, void *data)
{
	if (count > SKEL_BUFMAX)
		count = SKEL_BUFMAX;
	memcpy(buf, skel_buffer, count);   /* generate file */
	*eof = 1;                          /* end of file */
	return(count);
} /* skel_read_proc() */

The functions can be tested as following:

[ealtieri@italia dev]$ sudo /sbin/insmod skeldev3.o
[ealtieri@italia dev]$ echo "Hello World" > /dev/skeldev
[ealtieri@italia dev]$ cat /proc/skeldev
Hello World
[ealtieri@italia dev]$

skeldev3.c implements the /proc/skeldev entry.

The /proc filesystem is a simple way to communicate system information to user processes and is extensively used under Linux. Examples of /proc entries are /proc/meminfo, which displays information about memory, and /proc/cpuinfo, which displays processor type and features.

Writing handlers for /proc files can become really complicated if the data to be output is big. In this case, several read() calls may be needed to retrieve the whole data. In between successive read() calls, the module or kernel's data structures being read can change, causing inconsistency in the output.

More information about the /proc filesystem can be found on Linux Device Drivers, page 103.

Questions

1. The /dev/null device discards everything that is being written to it and returns nothing when reading from it. This device is useful if you want to hide the messages output by a program. For example: "gcc example.c > /dev/null" will hide all of the compiler's messages. How would you implement this device driver?
2. Modify the skeldev2.c device driver so that the read() file operation returns the data written to the buffer in opposite order.
3. Communication between different running processes is a major topic in Operating Systems. This is called Inter-Process Communcation (IPC). Describe how you would use a device driver for inter-process communication.

Resources

	Linux Device Drivers, Second Edition, by Alessandro Rubini and Jonathan Corbet. Original version published by O'Reilly & Associates. Available online in PDF and HTML format.
	skeldev.c is a basic implementation of a device driver. It registers itself and creates a /dev/skeldev.c entry. The driver does not handle any file operation - the default OS actions apply.
	skeldev2.c is a basic device driver implementation with read() and write() file operations.
	test_skel2.c is a test program for the skeldev2.c device.
	skeldev3.c implements the /proc/skeldev entry.
