Lab #8 (03/28/02)
This lab is your first introduction to the 6800 microprocessor Kit.
© D. Thiébaut

---

     CSC270  Lab #8

---

Experiment #1: The Microprocessor Kit

Introduction

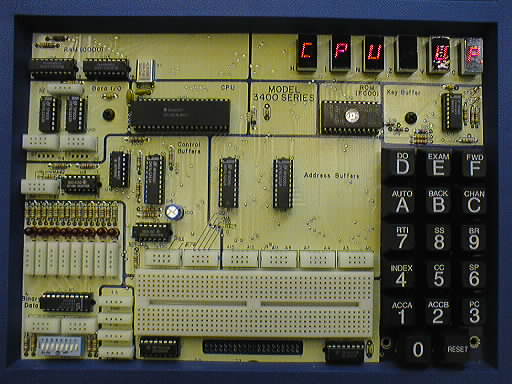

First, you'll have to check the kits. The keyboard can be used to enter hexadecimal value into memory as well as into CPU registers. The table below lists the main commands and the actions they perform.

Key	Name	Description
	RESET	Takes you out of trouble! Press this key whenever you want to return to the "main prompt" showing CPU UP.
1	ACCA	Displays the contents of the A Accumulator. When this key is pressed, the contents of ACCA are shown and can be modified.
2	ACCB	Displays the contents of the B Accumulator and allows modification of its contents
3	PC	Displays the program counter. This register can be changed only with the C/CHAN key.
4	INDEX	Displays the contents of the IX register. It can be changed with the C/CHAN key as well
5	CC	Displays the Condition Codes Register. The HINZVC letters near the 7-segment displays identify the bits. This register CANNOT be changed with C/CHAN.
6	SP	Displays the Stack Pointer. This register cannot be modified
7	RTI	This key allows the user to restart a program stopped by a breakpoint or a single-step operation
8	SS	Single Step. Press this key to single step through a program.
9	BR	Break Point. After pressing BR the display will show four spaces to be filled by a hexadecimal address. Enter the address of the instruction you want to stop at
A	AUTO	Automatic input of data. "A" followed by a 4-digit address will allow you to enter your program, one byte at a time, in memory
B	BACK	(Used during input operations) Go to previous memory address and display its contents.
C	CHAN	Change value. This key can be used to change registers and/or memory.
D	DO	Should have been called GO. When D is pressed, the kit asks for a 4-digit address where the execution should start. This should be the beginning address of your program.
E	EXAM	Examine. Allows you to check the contents of memory by providing a 4-digit hex number. If you want to change the contents of a byte, press C/CHAN. To go forward in memory press F (Forward). B will take you Backward.

The Experiment

Your next step is to enter a test program in memory. The code of the assembled program is shown in hexadecimal below. The bytes must be stored starting at address 0000 in memory. Do not worry about how this program works for right now. This is simply a test that will energize most of the kit's devices.

	BD FC BC 86 01 20 07 D6 F1 CB 10 D7 F1 48 BD FE 3A CE
	2F 00 09 26 FD 16 5D 26 EC 86 01 DE F0 8C C1 0F 26 EA 20 DA

To enter the program, follow these steps:

1. press A 0000 (Automatically, store starting at 0)
2. Then enter the bytes, pressing the corresponding keys. The kit will automatically show you the address on the left, and the byte you are entering on the right. As soon as you enter the second digit of each byte, the kit Automatically moves on to the next one.
3. If for any reason you make a mistake, just press the RESET key. Then adjust the address of where you want to restart from and start the AUTO command again. For example, assume that you made a mistake entering the byte at address 0007. You do not have to restart at 0. Just enter A 0007 and start again from Address 7 on.
4. The series of byte is a simple program that should energize the display. When you are done entering it, press RESET. Just to make sure you have entered the sequence correctly, examine it.
5. Press E 0000, for examine memory starting at 0000. Press the F and B key to go forward or backward in the memory. When you are satisfied that you have entered the sequence correctly, press RESET.
6. Now tell the processor to start the program whose first op-code is stored at 0000:

   		D 0000  (for DO or go to  0000)


7. If all the segments of the display turn on one after the other, then you have entered your program correctly. If they don't, reenter the bytes again!

Your own test

It is now your turn to write your own program and enter it by hand. Let's do something simple.

	ORG	0000h	; specifies starting address 0

	DB	2	; 2 is stored at 0000
	DB	3	; 3 is stored at 0001
	DB	?	;

	ORG	0010h	; specifies starting address 10

	LDAA	0000h	; get Mem[0000] in ACCA
	ADDA	0001h	; ACCA <- ACCA + Mem[0001]
	STAA 	0002h	; Mem[0002] <- ACCA

The ORG statement specifies that the next assembly directive is to take place at the address specified after it. This will come in handy when we use Borland's Turbo Assembler tasm to assemble our program. For right now, assemble it by hand. That is, find the hexadecimal values that must be stored in memory, starting with address 0 and ending with address 14. Store your result in the table below.

Address	Op-Code/Bytes
0000	02
0001	03
0002	??
...
0010
0011
0012
0013
0014
0015
0016
0017

Once you are done, enter your program in the kit using the AUTO key.

Running your program

1. Instead of launching your program with DO 0010 (why isn't it a good idea?), we will single-step it. First you need to set the PC to 0010, which correspond to the first byte of the code. Remember to hit Reset first.

   		3(PC)	C(CHAN)	0010


2. Then let's initialize ACCA to 0.

   		1(ACCA)	C(CHAN)	00


3. Then we single-step:

   		8(SS)


4. The display is 00129B: Address 0012, contents 9B. That's the next instruction to be executed. The one at address 0010 just finished. Let's verify that we have, indeed, initialized ACCA with the 2 that was stored at address 0:

   		1(ACCA)


5. The display is/should be: Acca.02. If you do not get this display, your program was not entered properly, or you missed a step above! Assuming that you got this display, let's execute another instruction.

   		8(SS)


6. The display is now 001497: Address 0014, contents 97. Acca should have been incremented with the contents of address 0001.
7. Check it!

   		1(ACCA)


8. Finally, let's execute the last instruction.

   		8(SS)


If everything went fine, the sum of [0000] and [0001] should be stored in [0002]. Let's check it. This time you figure out how to do it!

Assembly

Assembling by hand is prone to errors. Assemblers are much better for that purpose. The problem is that we do not have a 6800 assembler. We have Borland's Turbo Assembler, TASM, but it is intended for 80X86 processors, which support radically different instructions. Is there a way we can still use it? The answer is that, with a good knowledge of macros, we can make tasm assemble (almost) anything we want.

Look at the listing below:

              PAGE   65,80
              TITLE  SUM.ASM
; ---------------------------------------------------------------
; Program for LAB #7
; ---------------------------------------------------------------
include       macro.asm
	       DOSSEG
 	      .model small
	      .code
	       ASM6800

              ORG       0000
a             DB        2
b             DB        3
c             DB        ?

              ORG       0010
start:        LDAA      a
              ADDA      b
              STAA      c
              BRA       start

	       END Start

It looks and feels like a PC program, but the instructions are 6800 instructions, and definitely not 8086 instructions. The "include macro.asm" is the key here.

Look at the output listing generated by tasm below. It may look strange at first, but pay close attention to the hexadecimal values in the left column, next to the addresses. What do you recognize? Tasm just generated for you the 6800 opcodes representing your program.

Turbo Assembler	 Version 2.0	    03/9/99 11:59:20	    Page 1
sum.ASM
SUM.ASM


      1				     ;
      2				     -----------------------------------------
      3				     ----------------------
      4				     ; Program for LAB #7
      5				     ;					     +
      6				     -----------------------------------------
      7				     ----------------------
      8						   DOSSEG
      9	0000					   .model small
     10	0000					   .code
     11				     include	   macro.asm
1    13
     14
     15						   ASM6800
     16						   ORG	     0000
     17	0000  02				   DB	     2
     18	0001  03				   DB	     3
     19	0002  ??				   DB	     ?
     20
     21						   ORG	     0010
     22	0010			     start:	   LDAA	     0000h
1    23	0010  96 00				   DB	     096h,i
     24						   ADDA	     0001h
1    25	0012  9B 01				   DB	     09Bh,i
     26						   STAA	     0002h
1    27	0014  97 02				   DB	     097h,i
     28						   BRA	     start
1    29	0016  20				   DB	     020h
1    30	0017  F8				   DB	     i
     31
     32						   END	     Start

The purpose of this experiment is for you to recreate the program above, assemble it, and get the machine code from the listing.

In order to assemble your own programs, you will need the macro.asm file that is used in the include statement.

Then, using Netscape, get the following files and store them in your newly created MC6800 directory.

• skel.asm,
• sum.asm,
• macro.asm.
• assembler.

Open a DOS window. If you can change directories to h:\ go ahead. You may not be able to and may need to use full pathnames. These instructions are written for the full pathnames. Do a DIR h:\mc6800 command to check that you have a copy of the different *.asm and *.exe files listed above.

One of the files is a skeleton file (skel.asm), which contains a shell ready to accept code written for the 6800. Make a copy of it and name it something like lab8.asm.

	c:\Windows\>copy h:\mc6800\skel.asm h:\mc6800\lab8.asm

Then edit this file using your favorite editor, and retype the sum program whose listing is shown above. E.g. use Edit h:\mc6800\lab8.asm and once you are done, save the file. If you are not in the h:\mc6800 directory you will have to change the include statement to include h:\mc6800\macros.asm. Next you will Enter the command:

	c:\Windows\>  h:\mc6800\tasm /l h:\mc6800\lab8

Take a look at the lab8.lst file using the DOS Edit command

	c:\Windows\>  edit h:\mc6800\lab8.lst

The list file will show the translation of 6800 Mnemonics to 6800 op-codes.

Notes on Syntax: Some 6800 assembly directives have been slightly modified to allow easier assembling by Tasm.

           Immediate Addressing
                Prefix the immediate operand with a pound sign, but
                unlike true 6800 instructions, leave a space between
                the pound and the operand.

                Example:    LDAA   # 3            ;ACCA <-- 3

           Index Addressing

                use an uppercase X in front of the offset.

                Example:    LDAA   X,4            ;ACCA <--[X+4]

 ALSO:  The assembler may output warnings for those 6800 mnemonics that
        coincide with 80X86 instructions.  This is fine, and the macro
        definition will override the instruction.
        The assembler will also output errors when instructions refer to
        variables rather than absolute address.  In the above demo program
        the "LDAA a" results in an error:

           **Error** YOURPROG.ASM(6) LDAA(13) Relative quantity illegal

        This error is not a 6800 error, just something TASM doesn't like to
        do, although it is kind enough to do it and to assemble it right!
        If we had used instead "LDAA 0001" which refers to the same memory
        location, the meta-instruction would have been assembled without
        error.

Your assignment for Lab #9:

Write a small program as an endless loop that reads a byte from memory address 0, increments it by 1, and stores the result back at that address. Assemble the program using Tasm and come back to next lab with its listing. We'll need it to observe in real time how the processor executes your program (we'll use the oscilloscope to capture the signals). Make sure this program, in both assembly and hex form, is part of the lab report you hand in on April 4th.
