2114A - 1024x4 bit Static RAM |
![]() |
Description The 2114A is a 4096-bit static Random Access Memory organized as 1024 words by 4-bits. It uses fully DC stable (static) circuitry throughout, in both the array and the decoding, therefore it requires no clocks or refreshing to operate. Data access is particularly simple since address setup times are not required. The data is read out nondestructively and has the same polarity as the input data. Common input/output pins are provided.
|

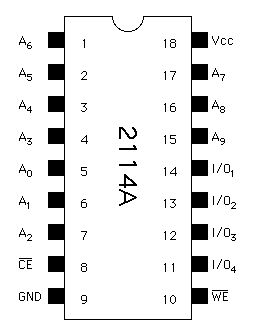

Pin Names
A0 - A9
I/O1 - I/O4
WE*
CS*
Vcc
GND
Operating Characteristics
Vcc = 5V +- 5%
GND = 0V
Supply Current = 70mA max
Read Timing (2114AL-1)
Read Cycle Time
Access Time
Chip Selection to Output Valid
Chip Selection to Output Active
Output 3-state from Deselection
Output Hold from Address Change
Write Timing
Write Cycle Time
Write Time
Write Release Time
Output 3-state from Write
Data to Write Time Overlap
Data Hold from Write Time
Used In
Bally/Midway - TRON, Two Tigers, Kickman, Satan's Hollow, Timber, Wacko, etc.
Atari - Asteroids, Battlezone, Space Duel, Tempest, Dig Dug, etc.
Seiko/Epson SRM2114C
United Microelectronics Corporation UM6104
Intel 2114A (out of production)
AMD AM9114 (out of production)
Hitachi HM472114P (out of production)
Can substitute:
2148 or 2149 devices. (The 2148 is pin compatible, but much faster. The 2149 is faster and does not support a powerdown mode, which most likely isn't needed in a video game. Check that there isn't a battery backup system to any 2114's or 2148's before substituting 2149's or you might run down your batteries...)
Source of information
Intel Memory Components Handbook, 1983
United Microelectronics Corporation Memory ICs Data Book, 1990-1991
